Norco Storm 5

Norco Storm 5
  • Color: Orange/Charcoal
  • Color: Ultraviolet/Pink
  • Color: Silver/Black
$599.99 - $799.99
Please select options


The Storm 5 picks up where road, gravel, and hybrid bikes can't go—fatter tires, off-road-oriented progressive design, and features that'll give you the chance to explore what mountain biking is all about.

With a comfortable, capable off-road design, the 6061 aluminum frame is off-road worthy, and capable of leading a double life on city streets and park paths. Designed with our holistic approach to fit and geometry, the Storm 5’s longer reach, slacker head tube angle and steep seat tube angle provides more powerful, efficient pedaling, increased climbing traction and added grip and control when descending.

Complementing its 100mm of SR Suntour XCE28 fork travel is a solid, reliable Shimano Tourney EZ-Fire 21 speed drivetrain, so you can always find the right gear and spend less time at the shop. The mechanical disc brakes provide controllable power for confident, safe stops on and off of the road.

Progressive Design

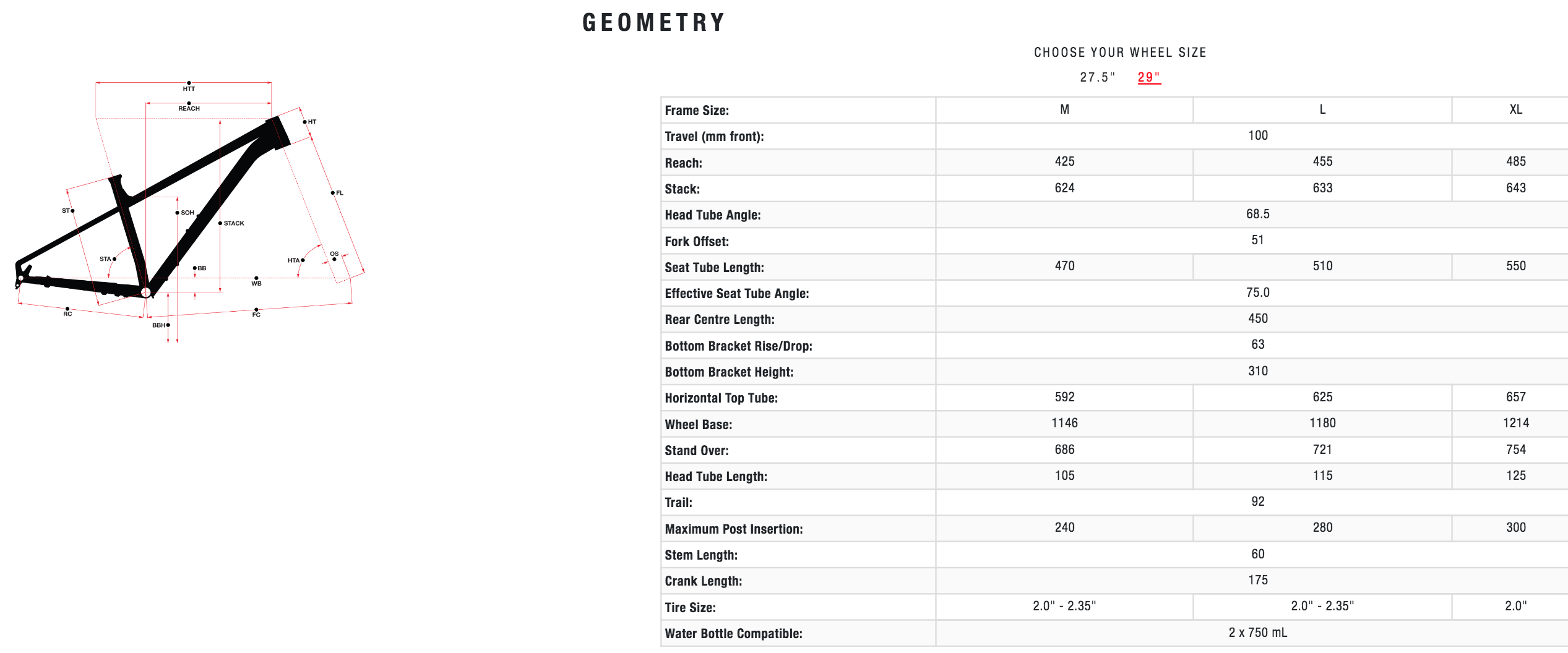

- The Storm uses Norco's holistic approach to fit and geometry to achieve its nimble, confident trail performance. The unique combination of longer reach, slacker head tube angle and steep seat tube angle provides a more forward weight distribution within a longer wheelbase. This allows more powerful, efficient pedaling, increased climbing traction and added grip and control when descending to help make the most of every ride.

100mm Travel Suspension Fork
- Each Storm features 100mm of front suspension travel – the perfect amount for off-road adventure and exploration, without feeling like you're carrying around extra weight or bulk when you don't need it.

Internal Routing For Shifter and Brake Cables
- By routing the brake and shift cables inside the frames, they are out of harm's way and away from the elements. That means shifting and braking performance last longer between services, and the bikes look clean!

2.35" Tire Clearance
- The Storm series comes equipped with 2.25" tires for a smooth, all-round fast ride, but the frame is designed to take up to 2.35" rubber, so if your adventures start to get a little looser, just throw on some wider tires, and the Storm is good to go!

Two Wheel Sizes, One Bike
- Depending on what frame size you ride, the Storm is available in a wheel size to suit you. The XS, and S are equipped with 27.5" tires to help fit smaller riders, and the L and XL feature 29" wheels so taller riders can take advantage of their smooth ride. If you ride a medium, you're in luck! You get to choose either wheel size depending on your preference!

Wheel size:
- Sizes XX-Small – Medium: 27.5-inch
- Sizes Medium – X-Large: 29-inch


Frame Storm 6061 Alloy XC Frame
Fork SR Suntour XCE28, 100mm Travel
Headset Zero Stack
Axles Alloy QR
Rims/Wheels WTB SX19
Hubs Front: Alloy QR 9x100mm QR
Rear: Alloy QR 10x135mm QR HG, 6 Bolt
Spokes Stainless Black
Tires WTB Starflight 2.25"
Crankset Prowheel TA-CQ90 24/34/42T, 170mm (XXS, XS, S), 175mm - (M, L, XL)
Bottom Bracket Cartridge, BSA Threaded
Chain KMC Z7
Front Derailleur Shimano Tourney FD-TY500
Rear Derailleur Shimano Tourney RD-TX300
Cassette/Rear Cogs CS-M3007, 11-34T, 7 Speed
Shifters Shimano TX ST-EF500
Handlebars X6 Alloy, 720mm (XXS, XS, S), 740mm (M, L, XL), 25mm Rise
Tape/Grips Norco
Stem Norco Alloy 60mm
Brake Levers Shimano EF500 Tourney
Brakes C-Star Mechanical Disc Brake
Pedals VP Nylon Flat
Saddle Norco XC
Seat Post Alloy 31.6mm

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Orange/Charcoal / XX-Small / 27.5-inch 058817477386 0670821712 210000122949
Orange/Charcoal / X-Small / 27.5-inch 058817477393 0670821713 210000116449
Orange/Charcoal / Small / 27.5-inch 058817477409 0670821714 210000116342
Orange/Charcoal / Medium / 27.5-inch 058817477416 0670821715 210000122950
Orange/Charcoal / Medium / 29-inch 058817477423 0670821915 210000116345
Orange/Charcoal / Large / 29-inch 058817477430 0670821916 210000116343
Orange/Charcoal / X-Large / 29-inch 058817477447 0670821917 210000116451
Ultraviolet/Pink / XX-Small / 27.5-inch 058817522567 0670831712 210000119596
Ultraviolet/Pink / X-Small / 27.5-inch 058817522581 0670831713 210000116450
Ultraviolet/Pink / Small / 27.5-inch 058817522598 0670831714 210000116447
Ultraviolet/Pink / Medium / 27.5-inch 058817522604 0670831715 210000116346
Ultraviolet/Pink / Medium / 29-inch 058817522611 0670831915
Ultraviolet/Pink / Large / 29-inch 058817522628 0670831916 210000116445
Ultraviolet/Pink / X-Large / 29-inch 058817522635 0670831917 210000122951
Silver/Black / XX-Small / 27.5-inch 058817477133 0670811712 210000122944
Silver/Black / X-Small / 27.5-inch 058817477300 0670811713 210000119598
Silver/Black / Small / 27.5-inch 058817477317 0670811714 210000122945
Silver/Black / Medium / 27.5-inch 058817477324 0670811715 210000122946
Silver/Black / Medium / 29-inch 058817477331 0670811915 210000122947
Silver/Black / Large / 29-inch 058817477348 0670811916 210000122948
Silver/Black / X-Large / 29-inch 058817477379 0670811917 210000116452
